N/WL Overshot for surface drilling mineral exploration wireline coring drilling.

Brand Name : cge

Model Number : N/WL

Certification : ISO

Place of Origin : Wuxi

MOQ : 1 Pc

Price : $150-200

Payment Terms : T/T, L/C, Western Union, D/A, D/P, MoneyGram

Supply Ability : 500-600 pieces per month

Delivery Time : 7-10 days

Packaging Details : plywood case/ Hard carton tube

Product name : H/WL Overshot

Type : H/WL

Material : Stainless Steel,High quality Steel,Carbon Steel,Carbide,Chromium

Application : Lifting out the core barrel assembly from the hole.

Standard : DCDMA ISO

Contact Now

BWL BWL-U wireline overshot for surface drilling mineral exploration geotechnical environmental drilling

BQ NQ HQ PQ BQU NQU HQU NQ3 HQ3 PQ3

When the inner-tube is full, a device called an overshot is lowered down the hole via a wireline cable and brought to the surface by use of a winch.

N/WL Overshot for surface drilling mineral exploration wireline coring drilling.N/WL Overshot for surface drilling mineral exploration wireline coring drilling.N/WL Overshot for surface drilling mineral exploration wireline coring drilling.N/WL Overshot for surface drilling mineral exploration wireline coring drilling.

BWL Overshot

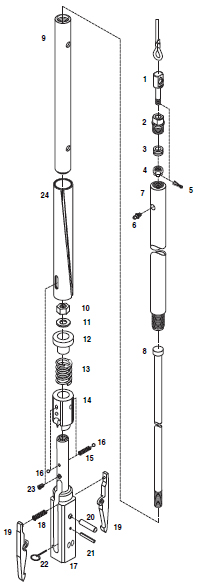

BWL Overshot Assembly
Item Part # Description
1-24 3546822 BWL Overshot Assembly
1 25991 Eye Bolt
2 25990 Cable Swivel Collar
3 25986 Thrust Bearing
4 25985 Castle Hex Nut, 1/2" UNF
5 44615 Cotter Pin, 3/32" x 3/4"
6 17447 Hydraulic Grease Fitting
7 44434 Cable Swivel Body, BWL
8 3546821 Jar Staff, BWL
9 44435 Jar Tube, BWL
10 62904 Hex Nut, 9/16" UNC
11 3548184 Nord-Lock Washer, 9/16"
12 3546823 Over-Shot Cap, BWL,
13 3544104 Over-Shot Spring, BWL,
14 3546883 Over-Shot Sleeve, BWL,
15 3545053 Compression Spring
16 3543772 Ball, 11/32"
17 3546825 Over-Shot Head, BWL
18 6951 Compression Spring
19 6950 Lifting Dog, BWL
20 42941 Plain Pin 1/2" x 1-1/2"
21 29073 Coiled Pin, 3/16" x 1-3/8"
22 3546747 Locking Pin
23 3545073 Nylok Set Screw, 3/8" x 3/4"
24 15575 Locking Sleeve, BWL

NOTE:

*BWL-U overshot is also available

N/WL Overshot for surface drilling mineral exploration wireline coring drilling.
